    Wiring Centre S Range - Control Centre - 4 Zone

    WHS-C-B-MASTER01

    25% OFF

    £83.57

    £69.64

    £62.68 inc. VAT

    £52.23 ex. VAT

     Typically available in 2-3 working days

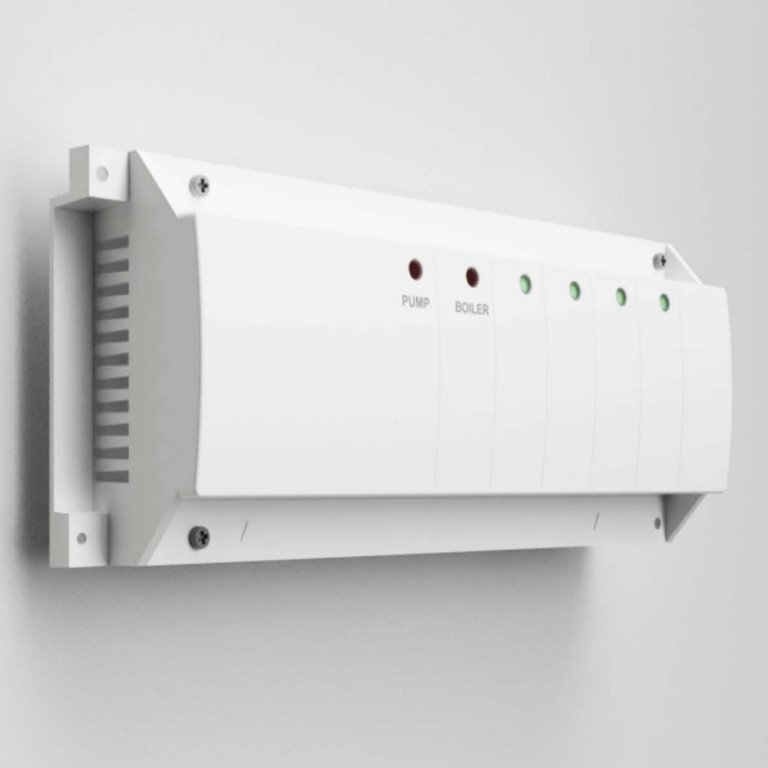

    • The S-Series Master Wiring Centre is designed to work with our 6iE, Element, tempo and S-Series range of thermostats and your heat source, i.e. boiler. The wiring centre can control up to 4 zones and connects room thermostats to their corresponding actuators. Additional zones can be added using the S-Series 4 or 6 zone Slave units. When the wiring centre is in operation, 230v output will switch relevant zone actuators, underfloor heating pump and valve on. Each zone is indicated by individual LED’s on the wiring centre. The wiring centre can be adapted either on a DIN rail or directly on a wall.

      • Controls the operation of your wet underfloor heating system
      • The wiring centre can be adapted either on a DIN rail or directly on a wall.
      • A mains powered, low-voltage and wireless versions are available depending on your project needs
      Brand
      Warmup
      Guarantee
      3 Years
      Category
      Wiring Centre
      Range
      Water Systems
      Product Code
      WHS-C-B-MASTER01
      Main Colour
      White
      Weight
      414 g
      Length
      240 mm
      Width
      100 mm
      Height
      65 mm
      GTIN
      5034526006302
